12V 2000A 24KW IGBT Electroplating Rectifier - High-Power for Nickel/Copper/Silver/Gold Plating, Industrial-Grade Durability

Name: 12V 2000A 24KW IGBT Electroplating Rectifier HighPower for NickelCopperSilverGold Plating IndustrialGrade Durability
Brand: Xingtongli
Price: 1200 USD

Quality 12V 2000A 24KW IGBT Electroplating Rectifier - High-Power for Nickel/Copper/Silver/Gold Plating, Industrial-Grade Durability wholesale

Brand Name : Xingtongli

Model Number : GKD12-2000CVC

Certification : CE ISO9001

Place of Origin : China

MOQ : 1pcs

Price : 1200-2000$/unit

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 200 Set/Sets per Month

Delivery Time : 5-30 working days

Packaging Details : strong plywood standard exporting package

Contact Now

Product Description

The 12V 2000A 440V 3-Phase IGBT Electroplating Rectifier is specially designed for nickel, copper, silver, gold, and other metal plating applications, offering industrial-grade durability and precision for high-accuracy surface treatment. Utilizing IGBT (Insulated Gate Bipolar Transistor) technology and a nanocrystalline soft magnetic material transformer, it delivers efficient and stable DC output. The rectifier supports a 3-phase 440V input, with a continuously adjustable output voltage of 0-12V and a sustained 2000A current load. Boasting an impressive 89% efficiency, it significantly reduces energy consumption.

Product Parameters

Input Specifications

Voltage: 3-Phase AC 440V
Frequency: 50/60Hz

Output Specifications

Voltage Range: 0-12V continuously adjustable (digital display, adjustment accuracy ≤1%)
Current Range: 0-2000A continuous output (constant current/constant voltage dual-mode switching)
Output Ripple: ≤1% (high-frequency PWM modulation technology)
Efficiency: ≥89% (IGBT topology with nanocrystalline transformer)

Protection Functions

Overcurrent Protection
Overheat Protection
Overvoltage/Undervoltage Protection
Short Circuit Protection

Certifications and Compliance

Safety Certifications: CE certified (compliant with LVD, EMC, and RoHS directives)
Industry Standards: Meets IEC 60950-1 (Safety of Information Technology Equipment) and ISO 9001 quality management system

Typical Application Scenarios

Metal Plating: Single-metal and alloy coatings (nickel, copper, silver, gold) for electronic components, jewelry, and automotive parts.
Surface Treatment: Anodizing, electropolishing, electroforming, and other processes requiring high current density.
Industrial Production: Large-scale plating lines requiring long-term stable power supply, such as PCB manufacturing and bathroom hardware processing.

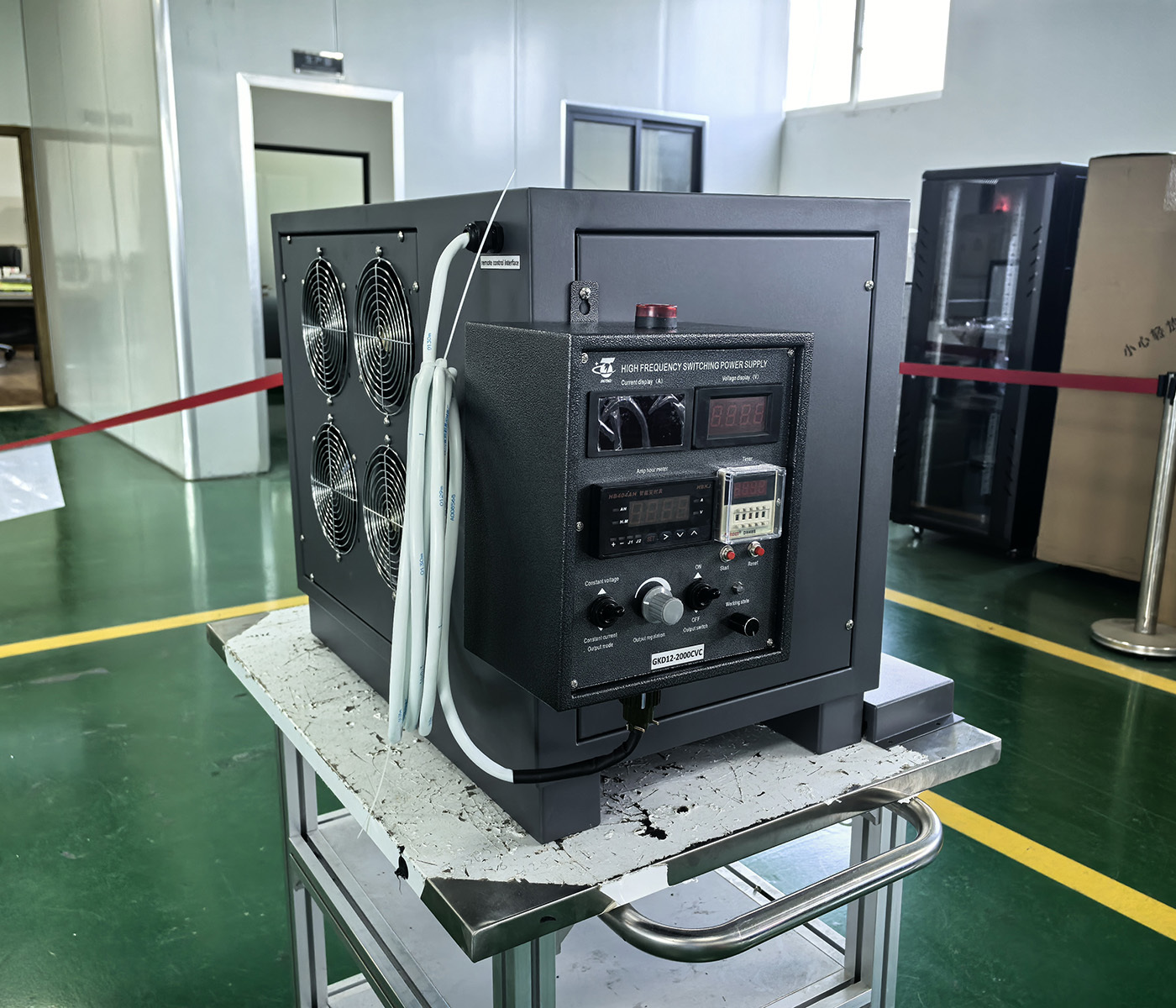

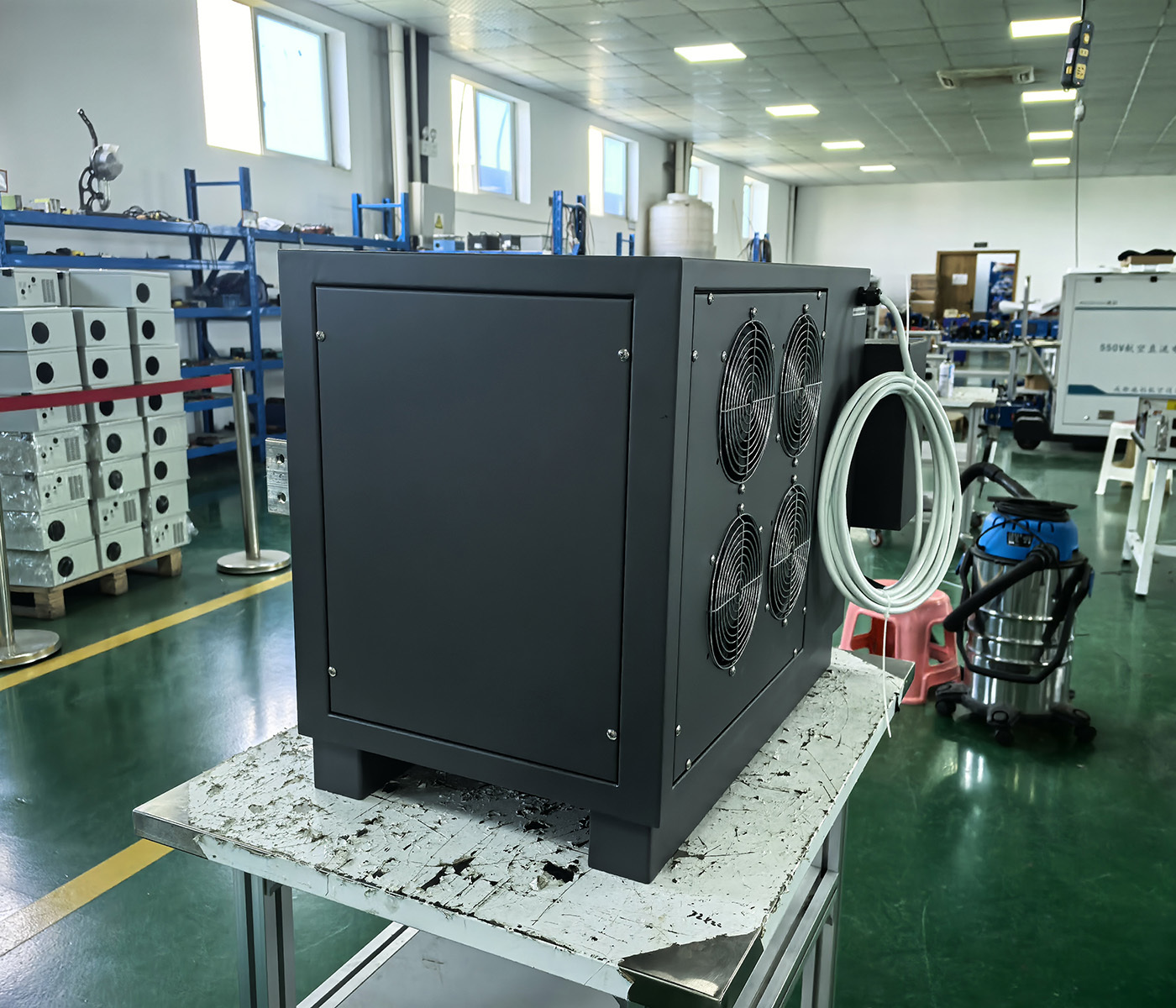

12V 2000A 24KW IGBT Electroplating Rectifier - High-Power for Nickel/Copper/Silver/Gold Plating, Industrial-Grade Durability Images
